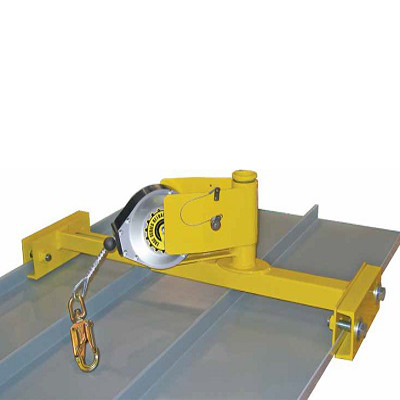

Reusable temporary anchor point that fits most retractable lifelines (up to 50' in length). Allows retractables to rotate 360 degrees. Attaches to compatible metal/aluminum roof seams spaced from 24-36 inches apart.
| Phase of Construction |
| Roof shingling |
| Manufacturer’s Device Page |
| Guardian Fall Protection |
| Installation |
| Install only on compatible roofs and use compatible components. Harness D-ring must ALWAYS remain level with or below clamp. Adjust telescoping tubing to hook under lip of roof seam and fasten clamp; tighten mounting bolts to 50 foot-pounds. Slide SRL into carriage and insert clevis and hitch pins. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
| Manual |
| Instruction Manual |
| Vendor |
| fallprotectionpros.com |
| Cost |
| $250 |
